Extruded Rubber Marine Fender

OO Series - Cylindrical with O Bore

Pier Fender, Dock Fender, Boat Fender, Industrial Fender

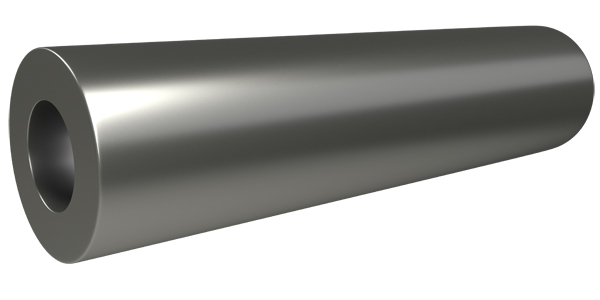

cylindrical with o bore marine rubber fenders


Load Curves - Cylindrical Marine Rubber Fender


Cross Section Sizes Per Chart Below

Cut To Length as Desired

Maximum Length: 20 Feet in Most Cases

Pre Drilled Mounting Holes if Desired

Pre Curved to Match Radius if Desired

High Quality Black or Non Marking Grey EPDM

Standard Hardness of 75 Durometer

Custom Materials and Cross Sections Available

Download Marine Extruded Rubber Fender Catalog

Information Required to Quote Extruded Marine Rubber Fenders

Marine Extruded Rubber Fender Compound Specifications

How to Size Marine Extruded Rubber Fenders

cylindrical extruded marine rubber fender  Cylindrical Marine Rubber Fender


Part

Diameter

Bore

Number

D

B

OO-3-1

3

1

OO-3-1.5

3

1 1/2

OO-5-2.5

5

2 1/2

OO-7-3

7

3

OO-7-3.5

7

3 1/2

OO-8-4

8

4

OO-10-5

10

5

OO-12-6

12

6

OO-15-7.5

15

7 1/2

OO-16-8

16

8

OO-18-9

18

9

OO-20-10

20

10

OO-22-11

22

11

All Measurements in Inches

Custom and Modified Cross Sections Available
