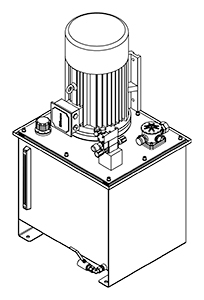

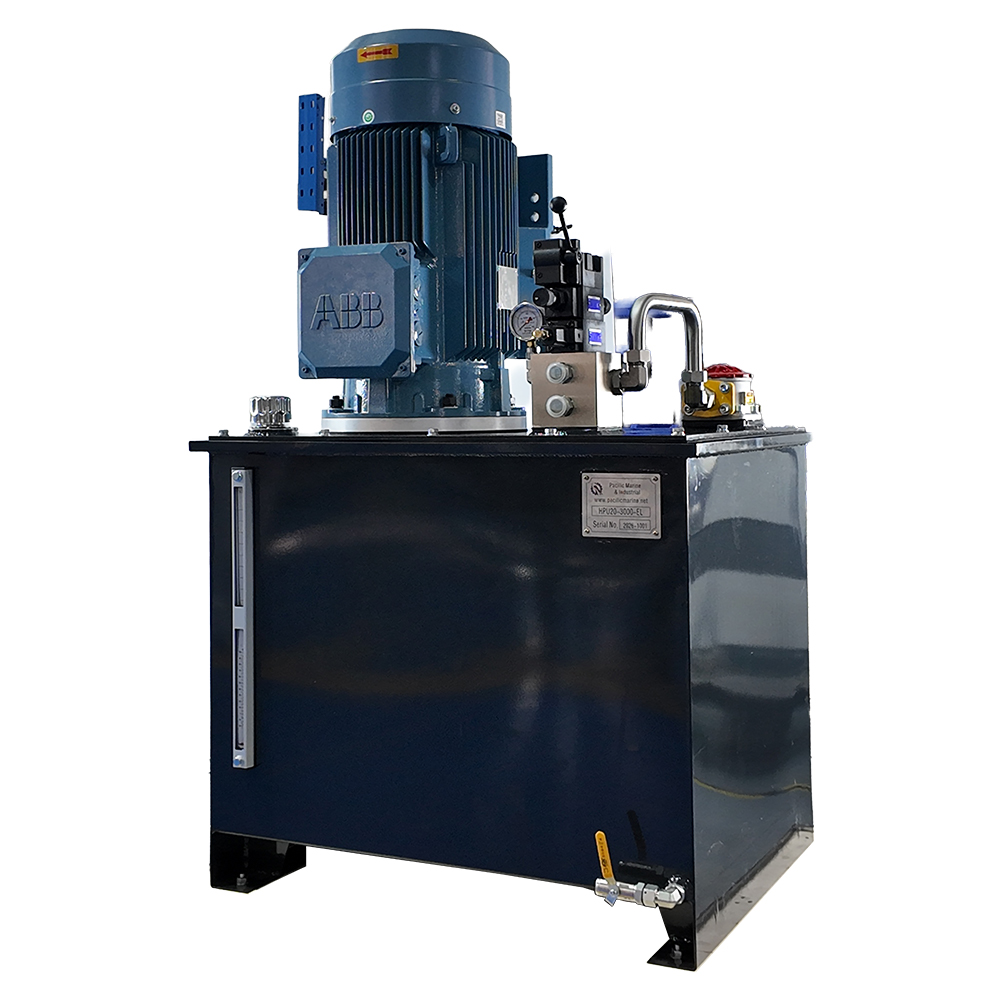

Electric Hydraulic Power Unit

Purchase ONLINE: Hydraulic Power Units

Information Needed For Custom Hydraulic Power Unit Quotations

5 GPM Electric Hydraulic Power Unit

10 GPM Electric Hydraulic Power Unit

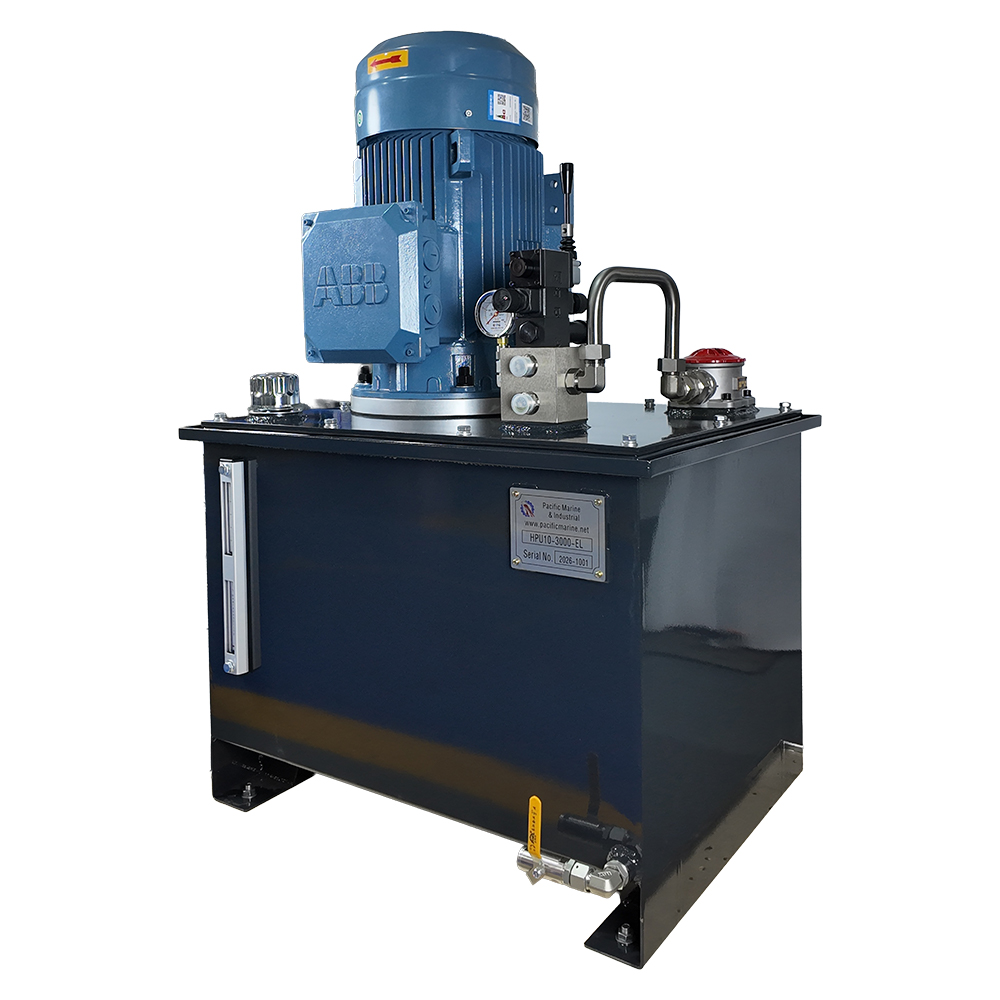

15 GPM Electric Hydraulic Power Unit

5 GPM at 3,000 PSI

10 GPM at 3,000 PSI

15 GPM at 3,000 PSI

100 Liter Oil Tank

180 Liter Oil Tank

250 Liter Oil Tank

ABB Motor, Yuken Control Valve

ABB Motor, Yuken Control Valve

ABB Motor, Yuken Control Valve

Boden Gear Pump

Boden Gear Pump

Boden Gear Pump

20 GPM Electric Hydraulic Power Unit

25 GPM Electric Hydraulic Power Unit

30 GPM Electric Hydraulic Power Unit

20 GPM at 3,000 PSI

25 GPM at 3,000 PSI

30 GPM at 3,000 PSI

350 Liter Oil Tank

450 Liter Oil Tank

500 Liter Oil Tank

ABB Motor, Yuken Control Valve

ABB Motor, Yuken Control Valve

ABB Motor, Yuken Control Valve

Boden Gear Pump

Qidong Gear Pump

Qidong Gear Pump

Hydraulic Power Units are used to generate hydraulic pressure and flow for operation of cylinders,

hydraulic motors, and other hydraulic equipment.

Our Electric Hydraulic Power Units are electric motor driven and supplied as complete assemblies including pump,

motor, oil tank, valve system, and instrumentation.

Units are available in standard STOCK sizes from 5 GPM to 30 GPM

with operating pressures up to 3,000 PSI.

Custom units available!

For use on vessels, platforms, and other marine and industrial applications.

ABB Motor: 460V/3ph/60hz and IP55 Rated:

Protected against dust ingress (limited) and low-pressure water jets from any direction

Boden Positive Displacement Gear Pump (5 to 20 GPM Units)

(A Direct replacement using Marzoochi Pump)

Qidong Pumps Positive Displacement Pump (25 GPM and Larger)

Yuken (Japan) Manual Control Valve
- 4 ports / 3 positions
- Directional Open Center That Unloads Pump to Tank

Oil Pipes: Stainless Steel
Oil Tank: Sandblasted & Painted Inorganic Zinc Rich Primer

Color: Black Grey RAL 7021
With 316L Stainless Name Plate

Custom Hydraulic Power Units available upon request.
