Roller Fairleads - Fair Lead

3 Roller Fairleads

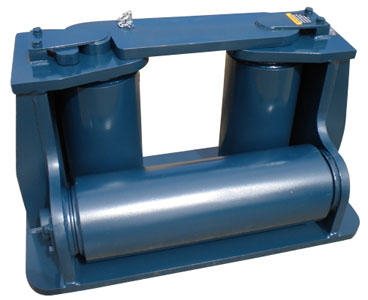

3 Three Roller Fairleads  3 Three Roller Fairleads

Various Sizes Available:
Sized Based on Breaking Strength and Wire Rope Size

Information Needed To Quote Roller Fairleads

Standard Features:
Removable top plate or open top
For departure angels up to 45 degrees
Heavy Duty Steel Rollers
Oil Impregnated Bronze Bushings (No Grease Required)
Alloy Steel Shafts with Bolt-In-Place Keeper Tabs
All Steel Frame Construction and Weld Down Base Plate
Designed For Daily Use In Harsh Environment
White Blasted and Coated With Blue Marine Duty Paint

Optional Features:
Stainless Steel Shafts and Hardware
Sealed Roller Bearings
Various Roller Materials for Special Applications
Bolt Down Style Base Plate
Additional Rollers and Configurations
Special Primers and Paints / Coatings

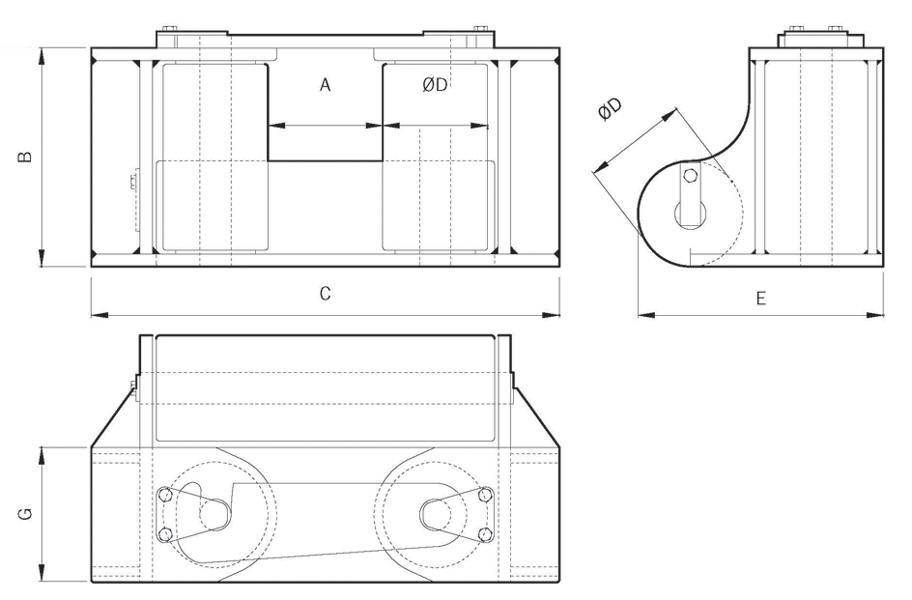

3 Three Roller Fairleads

TYPE A B C D E G
F3-30 84 155 340 76.2 180 100
F3-40 112 210 450 101.6 235 130
F3-50 150 270 600 133 315 170
F3-70 185 335 750 171.5 390 215
F3-80 230 400 900 194 455 250
F3-100 275 520 1120 250 585 320
Larger and custom sizes available.  All dimensions in mm. Dimensions subject to change.
