Container Bridge Fittings

BE-A1 Tension Only Type Bridge Fitting

Class Society Approved: ABS, DNV-GL, CCS and Others

Container Bridge Fittings Tension Type

BE-A1 Series

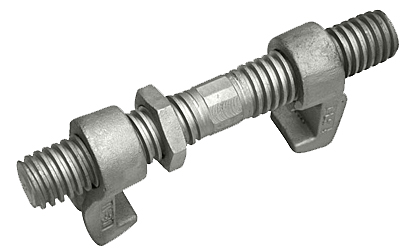

Tension Type Container Bridge Fittings

Breaking Load: 100 kN = 10 Tons

Purchase ONLINE Small Quantities of Container Lashing

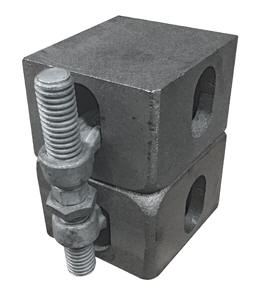

Counter Parts: ISO Shipping Cargo Container with ISO Hole

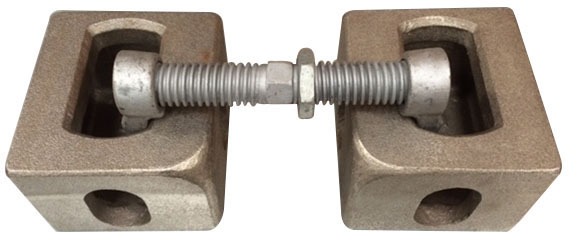

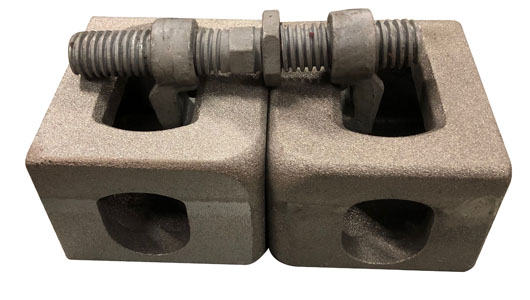

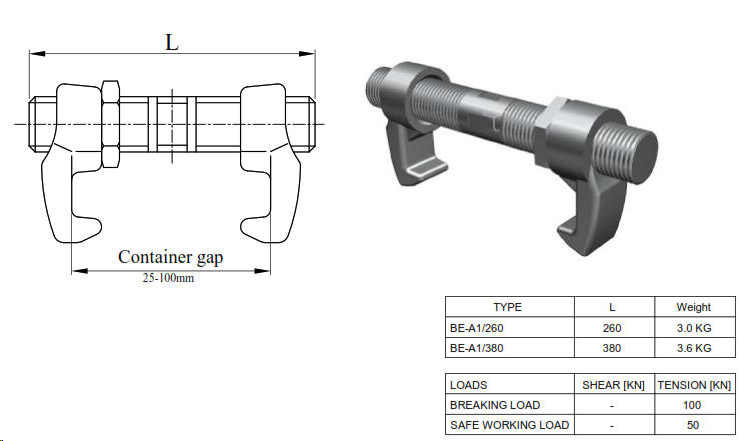

Container Bridge Fittings Tension Type

		Max Separation	Max Separation	Max Separation
Model	Length	Container Top Use	Side Bottom Hole Use	Side Top Hole Use
BE-A1/260	260mm / 10.24 inches	5 Inches	4 Inches	4.75 Inches
BE-A1/380	380mm / 15 inches	9.6 Inches	8.6 Inches	9.4 Inches
BE-A1/610	610mm / 24 inches	18.6 Inches	17.6 Inches	18.4 Inches

Other Lengths Available

Bridgefitting Operation Tool TB-H1

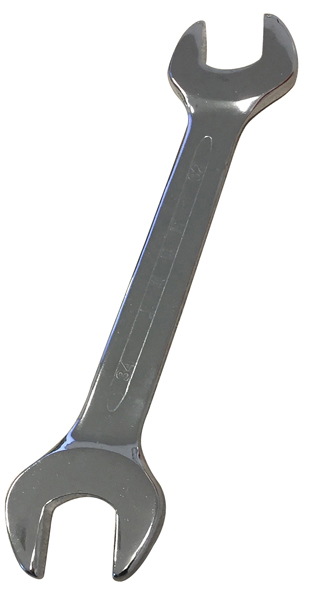

Bridge Fitting Spanner Tool TB-H1

Container Bridge Fittings

Return to Container Lashing Main Page

Purchase ONLINE Small Quantities of Container Lashing

Download Complete Container and Cargo Securing Catalog with Drawings

Container Lashing Design: Ship or Barge

Cargo Securing Manual Approval By Class Society

Container Ship Hatch Covers and Lashing Bridges

How Do Container Ships Work?

Other Related Products:


Container Lashing	Cargo Straps	Cargo Chains & Tensioners	Cargo Lashing Points


Container Lifting & Towing	New Shipping Containers	Shipping Container Parts	Shipping Container Casters

Similar Design and Function Cross Reference:

GLS BE-A1

MacGregor H-3

SEC BR-T

ILS SB-1

Lucky Sea G1-1

SC Lashings BF-1

All Set C7-1

Peck & Hale PH2703

TEC PC-1

Taiyo L-3L

Tandemloc: P0500AC-1PZ
