Container Bridge Fittings

Tension Only Type

Container Bridge Fittings Tension Type


Purchase ONLINE Small Quantities of BE-A1/260 Tension Only Container Lashing Bridgefitting

BE-A1 Series

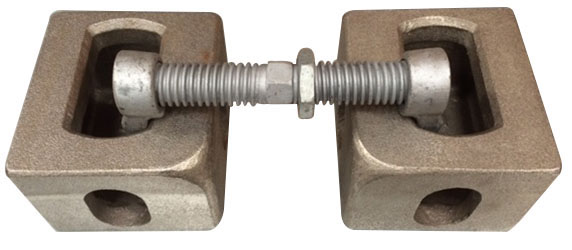

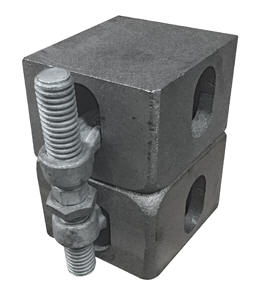

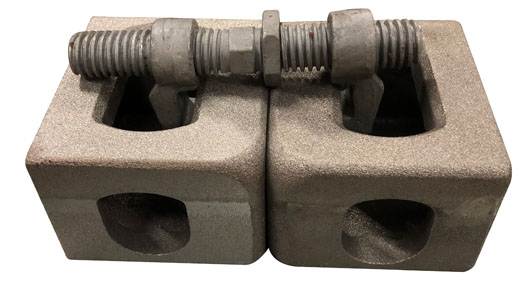

Tension Type Container Bridge Fittings

Breaking Load: 100 kN = 10 Tons



Container Bridge Fittings Tension Type  Container Bridge Fittings Tension Type  container bridge fitting clamp



Max Separation

Max Separation

Max Separation

Model

Length

Container Top Use

Side Bottom Hole Use

Side Top Hole Use

BE-A1/260

260mm / 10.24 inches

5 Inches

4 Inches

4.75 Inches

BE-A1/380

380mm / 15 inches

9.6 Inches

8.6 Inches

9.4 Inches

BE-A1/610

610mm / 24 inches

18.6 Inches

17.6 Inches

18.4 Inches

Other Lengths Available



Bridgefitting Operation Tool TB-H1
Bridgefitting Spanner Tool TB-H1



Download Complete Container and Cargo Securing Catalog with Drawings


How Do Container Ships Work?



How Does A Forge Work?



Return to Container Securing: Main Catalog Page


Shipping Container Connection Systems


Other Equivalent Equipment

Cargotec MacGregor: BF-1

SEC: BR-T

All Set: C7 and C7-1

Tandemloc: P0500AC-1PZ
