Round Flange Split Roller Bearings

Series 01 - Medium Duty - All Sizes

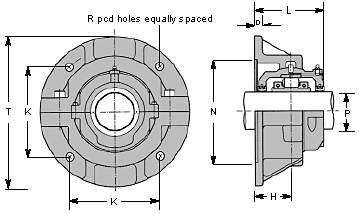

Round Flange Split Roller Bearings

01 Series flanges
Shaft diameter (d) References Flange outer casting only T Bolts R K P H Locating spigot L Wt.
(lb.)
(kg)
Flanges complete
inches mm inches millimeters N V
1 3/16
1 1/4
1 7/16
1 1/2		 35
40
 		 01 BCF 103
01 BCF 104
01 BCF 107
01 BCF 108		 01 BCF 35
01 BCF 40
 		 F01
 		 8
204
 		 4- 1/2
M12
 		 6 7/16
164
 		 4 9/16
116.0
 		 1/2
13
 		 2
51
 		 4 11/16
119.06
 		 1/8
3
 		 3 11/6
94
 		 18
8
1 11/16
1 3/4
1 15/16
2		 45
50
 		 01 EBCF 111
01 EBCF 112
01 EBCF 115
01 EBCF 200		 01 EBCF 45
01 EBCF 50
 		 F02
 		 8 1/2
216
 		 4- 1/2
M12
 		 7 1/8
180
 		 5
127.3
 		 1/2
13
 		 2 1/4
57
 		 5 3/8
136.52
 		 1/8
3
 		 4 3/16
106
 		 25
11
2 3/16
2 1/4
2 7/16
2 1/2		 60
65
 		 01 EBCF 203
01 EBCF 204
01 EBCF 207
01 EBCF 208		 01 EBCF 60
01 EBCF 65
 		 F03
 		 10 1/4
260
 		 4- 1/2
M12
 		 8 9/16
218
 		 6 1/16
15.42
 		 5/8
16
 		 2 5/8
67
 		 6 9/16
166.9
 		 1/8
3
 		 4 11/16
120
 		 33
15
2 11/16
2 3/4
2 15/16
3		 70
75
 		 01 EBCF 211
01 EBCF 212
01 EBCF 215
01 EBCF 300		 01 EBCF 70
01 EBCF 75
 		 F04
 		 11 1/4
286
 		 4- 1/2
M12
 		 9 9/16
242
 		 6 3/4
171.1
 		 5/8
16
 		 12 7/8
73
 		 7 9/16
192.09
 		 1/8
3
 		 5 1/8
130
 		 46
21
3 3/16
3 1/4
3 7/16
3 1/2		 80
85
90		 01 EBCF 303
01 EBCF 304
01 EBCF 307
01 EBCF 308		 01 EBCF 80
01 EBCF 85
01 EBCF 90		 F05
 		 13
330
 		 4- 5/8
M16
 		 10 3/4
274
 		 7 5/8
193.7
 		 3/4
19
 		 3 1/8
79
 		 8 1/2
215.90
 		 1/8
3
 		 5 13/16
148
 		 68
31
3 11/16
3 3/4
3 15/16
4		 100
105
 		 01 EBCF 311
01 EBCF 312
01 EBCF 315
01 EBCF 400		 01 EBCF 100
01 EBCF 105
 		 F06
 		 14
356
 		 4- 5/8
M16
 		 11 7/8
302
 		 8 3/8
213.6
 		 3/4
19
 		 3 3/8
86
 		 9 5/8
244.47
 		 1/8
3
 		 6
154
 		 82
37
4 3/16
4 7/16
4 1/2		 110
115		 01 BCF 403
01 BCF 407
01 BCF 408		 01 BCF 110
01 BCF 115		 F07 15
382		 4- 5/8
M16		 13 1/8
334		 9 5/16
326.2		 7/8
22		 3 5/8
92		 10 7/8
276.22		 1/8
3		 6 7/8
164		 112
51
4 15/16
5
 		 120
125
130		 01 BCF 415
01 BCF 500		 01 BCF 120
01 BCF 125
01 BCF 130		 F08 17
432		 4- 7/8
M24		 14 3/4
374		 10 7/16
264.5		 7/8
22		 3 7/8
98		 12 3/8
314.32		 1/8
3		 16 15/16
176		 158
72
5 3/16
5 7/16
5 1/2		 135
140		 01 BCF 503
01 BCF 507
01 BCF 508		 01 BCF 135
01 BCF 140		 F09 17 1/2
444		 4- 7/8
M24		 15 1/8
384		 10 11/16
271.5		 1
25		 3 7/8
98		 12 1/2
317.50		 1/8
3		 7 3/16
182		 158
72
5 15/16
6		 150
155		 01 BCF 515
01 BCF 600		 01 BCF 150
01 BCF 155		 F10 18 1/2
470		 4-1
M24		 16 1/4
412		 11 1/2
291.3		 1
25		 4 1/2
114		 13 5/8
346.07		 1/8
3		 7 15/16
202		 208
94
6 7/16
6 1/2		 160 01 BCF 607
01 BCF 608		 01 BCF 160 F11 19 1/2
496		 4-1
M24		 16 3/4
426		 11 7/8
301.2		 1
25		 4 1/8
105		 13 7/8
352.42		 1/8
3		 7 15/16
202		 220
100
6 5/16
7		 170
180		 01 BCF 615
01 BCF 700		 01 BCF 170
01 BCF 180		 F12 20
508		 4-1
M24		 17 1/4
438		 12 3/16
309.7		 1 1/8
29		 4 1/4
108		 14 3/8
365.12		 1/8
3		 8 3/16
208		 232
105
7 5/16
8		 190
200		 01 BCF 715
01 BCF 800		 01 BCF 190
01 BCF 200		 F13 21
534		 4-1
M24		 18 5/8
474		 13 3/16
335.2		 1 1/4
32		 4 1/4
108		 15 3/4
400.05		 1/8
3		 8 3/16
208		 278
126
9 220 01 BCF 900 01 BCF 220 F14 23
584		 4-1 1/4
M30		 20 1/8
512		 14 1/4
362.0		 1 3/8
35		 4 5/8
117		 17
431.80		 1/8
3		 8 7/8
226		 326
148
10 240 01 BCF 1000 01 BCF 240 F15 24
610		 4-1 1/4
M30		 21 3/8
542		 15 1/16
383.3		 1 3/8
35		 4 5/8
117		 18 1/4
463.55		 1/8
3		 9
228		 370
168
11 260
280		 01 BCF 1100 01 BCF 260
01 BCF 280		 F16 26
660		 4-1 1/4
M30		 23
584		 16 1/4
413.0		 1 1/2
38		 4 7/8
124		 19 7/8
504.82		 1/8
3		 9 7/16
240		 474
215
12 300 01 BCF 1200 01 BCF 300 F17 28
712		 4-1 1/4
M30		 24 5/8
626		 17 7/16
442.7		 1 1/2
38		 5 1/4
133		 21 1/4
539.75		 1/8
3		 10 1/8
258		 584
265
Add mm for millimeters and EX for expansion type or GR for fixed type to reference. i.e. 01 BCF 150mm GR.
