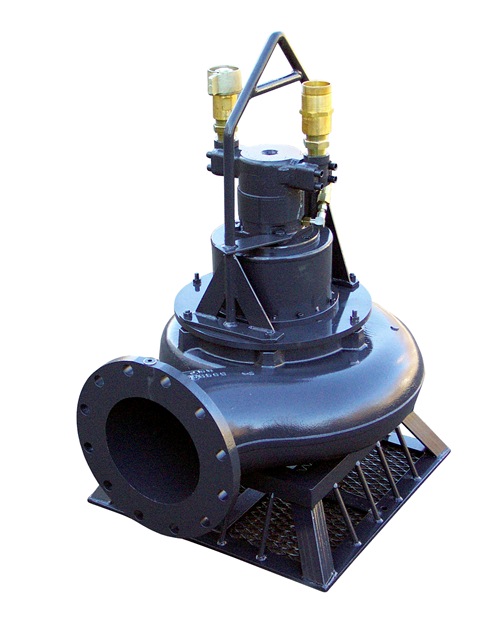

Submersible Sewage, Trash and Sludge
Up to 5200 GPM Flow Rate
10 Inch Discharge
Up to 190 Feet Head Pressure
Information Needed to Quote Hydraulic Powered Submersible Pumps
How to Size and Specify a Pump
Weight 739 lbs. (336 kg)
Height 43" (109 cm)
Diameter 32" (81 cm)
Discharge 10", 125# ASA Flange
Inlet Flange 10", 125# ASA Flange
Solid Handling 5" (13 cm)
Hose Ports 1-1/4" Code 61 Flange or 1-1/2" NPT (F)
Pump Body Ductile Iron
Impeller/Screw Ductile Iron
Elastometers Buna N (Std)
Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)
Input Flow Max 90 GPM (340 LPM)
Operating Pressure Max 3000 PSI (204 Bar)
Power Source Any Open Center Hydraulic System
Options and Accessories: Submersible Hydraulic Powered Pumps
Lagoon Raft
Silt Jetting Ring
Hydraulic Controls
Slurry Gate
