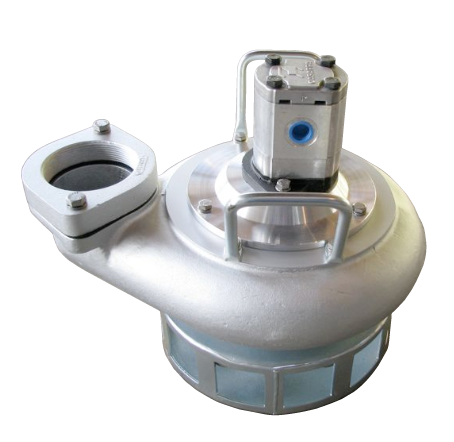

S4TLP General Purpose

Submersible Hydraulic Powered Pumps

Submersible High Efficiency Some Solids

Up to 800 GPM Flow Rate

4 Inch Discharge

Up to 85 Feet Head Pressure

Weight 107 lbs. (48 kg)

Height 13-3/4” (40 cm)

Diameter 19-1/2" (50 cm)

Discharge 4" NPT(F)

Inlet Flange 4", 125# ASA

Solid Handling 3" (8 cm)

Hose Ports 7/8-14 UNF (-10) SAE(F)

Pump Body Ductile Iron

Impeller/Screw Ductile Iron

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 10 GPM (38 LPM)

Operating Pressure Max 2800 PSI (190 Bar)

Power Source Any Open Center Hydraulic System

Options and Accessories: Submersible Hydraulic Powered Pumps


Lagoon Raft	Silt Jetting Ring	Hydraulic Controls	Slurry Gate
