Cutless Bearings - Cutlass Bearing

Naval Brass Flanged Strut or Aft Stern Tube Bearings

Strut or Aft Stern Tube Propeller Shaft Bearings
Cutless Bearings - Cutlass Bearing  Cutless Bearings - Cutlass Bearing


How to Install or Modify a Cutless Propeller Shaft Bearing

Clearance and Replacement Guidelines for Cutless Propeller Shaft Bearings

Hole Drilling Diagram for Flange on Flanged Propeller Bearings

How to Choose A Propeller or Rudder Shaft Bearing and the Differences Between Bearing Types

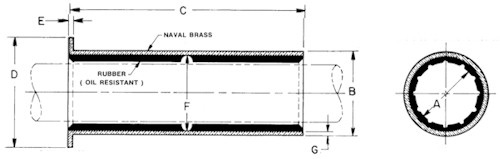

A B C D E
CODE NAME Shaft / ID (in.) OD (in.) Length (in.) Flange Diameter Flange Thickness Weight (lbs.)
Brace 2" 3" 8" 5" 3/8" 8
Broad 2 1/2" 3 3/8" 10" 5 1/2" 3/8" 9
Catch 3" 4 1/4" 12" 6 3/4" 1/2" 17
Clamp 3 1/4" 4 1/2" 13" 7" 1/2" 20
Crank 3 1/2" 4 3/4" 12 1/2" 6 3/4" 1/2" 21
Clear 3 1/2" 4 7/8" 14" 7 3/8" 1/2" 34
Civil 3 3/4" 5 1/4" 15" 7 3/4" 1/2" 39
Draft 4" 5 1/2" 16" 8" 1/2" 43
Dread 4 1/4" 5 3/4" 17" 8 1/4" 1/2" 47
Dance 4 3/8" 6" 22" 8 7/8" 1/2" 64
Drink 4 1/2" 6" 18" 8 7/8" 1/2" 54
Drove 4 3/4" 6 1/4" 19" 9 1/8" 1/2" 58
Earth 5" 6 3/4" 20" 9 5/8" 9/16" 75
Easel 5 1/4" 6 7/8" 21" 9 7/8" 9/16" 77
Erase 5 1/2" 7 1/4" 22" 10 1/4" 9/16" 89
Event 5 3/4" 7 1/4" 23" 10 1/4" 9/16" 91
Fable 6" 7 3/4" 15" 12 1/4" 9/16" 75
Fault 6" 7 3/4" 24" 11" 9/16" 98
- 6 1/8" 7 7/8" 22" 10 1/2" 9/16" -
Fence 6 1/4" 8" 22 1/2" 10 5/8" 9/16" 99
- 6 3/8" 8 1/8" 23" 10 3/4" 9/16" -
Flare 6 1/2" 8 3/8" 23 1/2" 11" 9/16" 129
Fleet 6 1/2" 8 3/8" 30" 11" 5/8" 141
Flute 6 5/8" 8 1/2" 15" 13 1/2" 5/8" 100
Floor 6 5/8" 8 1/2" 24" 11 1/4" 9/16" 133
Frank 6 5/8" 8 5/8" 24" 11 1/4" 9/16" 130
Froze 6 3/4" 8 3/4" 24" 11 1/4" 5/8" 131
Fancy 6 3/4" 8 3/4" 24 1/2" 11 3/8" 9/16" 135
Found 6 7/8" 8 7/8" 24 1/2" 11 3/8" 9/16" 134
- 6 7/8" 8 7/8" 25" 11 1/2" 9/16" -
Gavel 7" 9" 25 1/2" 11 5/8" 9/16" 137
Gland 7" 9 1/8" 25 1/2" 11 5/8" 9/16" 143
- 7 1/8" 9 1/8" 25 1/2" 11 3/4" 9/16" -
Glass 7 1/4" 9 1/4" 26 1/2" 11 7/8" 9/16" 148
- 7 3/8" 9 1/2" 27" 12 1/8" 9/16" -
Glory 7 1/2" 9 5/8" 17 1/2" 14 1/2" 1" 129
Globe 7 1/2" 9 5/8" 27 1/2" 12 3/4" 9/16" 160
- 7 5/8" 9 3/4" 28" 12 3/8" 9/16" -
Gipsy 7 3/4" 9 7/8" 28 1/2" 12 1/2" 9/16" 195
- 7 7/8" 10" 29" 12 5/8" 9/16" -
Heart 8" 10 1/4" 29 1/2" 13 1/4" 5/8" 197
Hedge 8" 10 1/2" 29 1/2" 13 1/4" 5/8" 232
- 8 1/8" 10 3/8" 30" 13 3/8" 5/8" -
Hitch 8 1/4" 10 1/2" 30 1/2" 13 1/2" 5/8" 212
- 8 3/8" 10 5/8" 31" 13 5/8" 5/8" -
Hoist 8 1/2" 10 3/4" 31 1/2" 13 3/4" 5/8" 221
- 8 5/8" 10 7/8" 32" 13 7/8" 5/8" -
Hover 8 3/4" 11" 32 1/2" 14" 5/8" 229
- 8 7/8" 11 1/8" 33" 14 1/8" 3/4" -
Infra 9" 11 1/4" 33 1/2" 14 1/4" 3/4" 246
Ideal 9" 11 1/2" 33 3/8" 15" 3/4" 275
- 9 1/8" 11 3/8" 34" 14 1/2" 3/4" 287
Inner 9 1/8" 11 1/2" 34 1/2" 16 3/8" 5/8" 284
Irish 9 1/4" 11 1/2" 34 1/2" 14 5/8" 11/16" 269
- 9 3/8" 11 5/8" 35' 14 3/4" 3/4" -
Inset 9 1/2" 11 3/4" 35 1/2" 14 7/8" 3/4" 274
- 9 5/8" 11 7/8" 36" 15" 3/4" -
Ivory 9 3/4" 12 1/8" 36 1/2" 15 1/4" 3/4" 295
- 9 7/8" 12 1/4" 37' 15 3/8" 3/4" -
Jewel 10" 12 3/8" 37 1/2" 15 1/2" 3/4" 332
- 10 1/8" 12 1/2" 38" 15 5/8" 3/4" -
Jetty 10 1/4" 12 5/8" 38 1/2" 15 7/8" 3/4" 353
- 10 3/8" 12 3/4" 39" 16" 3/4" -
Jumbo 10 1/2" 12 7/8" 39 1/2" 16 1/8" 3/4" 369
- 10 5/8" 13" 40" 16 1/4" 3/4" -
Judge 10 3/4" 13 1/8" 40 1/2" 16 3/8" 3/4" 384
- 10 7/8" 13 1/4' 41" 17" 3/4" -
Knock 11" 13 1/2" 41 1/2" 17 1/4" 3/4" 424
- 11 1/8" 13 5/8" 42" 17 3/8" 3/4" -
Kraft 11 1/4" 13 3/4" 42 1/2" 17 1/2" 3/4" 431
- 11 3/8" 14" 43" 17 3/4" 3/4" -
Kneel 11 1/2" 14 1/8" 43 1/2" 17 7/8" 3/4" 490
Knife 11 1/2" 14 7/8" 50 3/4" 20 1/4" 1 1/4" 871
- 11 5/8" 14 1/4" 44" 18" 3/4" -
Knots 11 3/4" 14 3/8" 44 1/2" 18 1/8" 3/4" 497
- 11 7/8" 14 1/2"" 45" 18 1/4" 3/4" -
Labor 12" 14 3/4" 45 1/2" 18 1/2" 3/4" 524
Logan 12 1/8" 14 7/8" 46" 18 5/8" 3/4" -
Lance 12 1/4" 15" 46 1/2" 18 3/4" 3/4" 540
Lease 12 3/8" 15 1/8" 47" 18 7/8" 3/4" -
Layer 12 1/2" 15 1/4" 47 1/2" 19" 3/4" 556
Logic 12 5/8" 15 3/8" 48" 19 1/8" 3/4" 545
Milky 12 3/4" 15 1/2" 48 1/2" 19 1/4" 3/4" -
Music 12 7/8" 15 5/8" 49" 19 3/8" 3/4" -
Mince 13" 15 7/8" 50" 19 5/8" 7/8" -
Mitty 13 1/8" 16" 50 1/2" 19 3/4" 7/8" -
Misty 13 1/4" 16 1/8" 51" 19 7/8" 7/8" -
Nifty 13 3/8" 16 1/4" 51 1/2" 20" 7/8" 716
Niece 13 1/2" 16 3/8" 52" 20 1/8" 7/8" 718
Novel 13 5/8" 16 1/2" 52 1/2" 20 1/4" 7/8" -
Ortha 13 3/4" 16 5/8" 53" 20 3/8" 7/8" -
Oggle 13 7/8" 16 3/4" 53 1/2" 20 1/2" 7/8" -
Opera 14" 16 7/8" 54" 20 5/8" 7/8" -
Purse 14 1/8" 17" 54 1/2" 20 3/4" 7/8" -
Polar 14 1/4" 17 1/8" 55" 20 7/8" 7/8" -
Point 14 3/8" 17 1/4" 55 1/2" 21" 7/8" 842
Prune 14 1/2" 17 1/2" 56" 21 1/4" 7/8" -
Price 14 5/8" 17 5/8" 56 1/2" 21 3/8" 7/8" -
Punch 14 3/4" 17 3/4" 57" 21 1/2" 7/8" -
Quake 14 7/8" 17 7/8" 57 1/2" 21 5/8" 7/8" -
Quiet 15" 18" 58" 21 3/4" 7/8" -

Custom Sizes Available Upon Request
