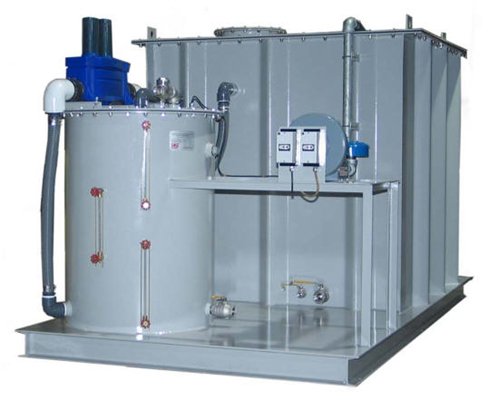

DV Type II - Type 2 MSD

Marine Sanitation Device

DV Series MSD

Skid Mounted

Flow: 990-20000 GPD (3700-75700 LPD)

1-2000+ crew

Blackwater and Greywater Treatment

Type II Marine Sanitation Device (MSDs)

Applications:

Larger Ship and Platform Applications

Crew Size Larger Than 80 Persons

DV-Series Reference Data - Standard Units
Model	D-1V	D-2V	D-3V	D-4V	D-5V	D-6V	D-7V	D-8V	D-9V
Effluent Quality and Rated Capacity (persons) USCG/IMO Effluent 30/30 Effluent	46 27	82 48	103 60	154 88	186 105	290 162	453 248	635 350	906 496
Overall Dimensions (in) Modular Construction Media Tank Length (note 1) Width (note 2) Height Machinery Module Length (note 1) Width (note 2) Height Complete Unit on Oilfield Skid Length Width (note 2) Height	50 48 79 45 34 79 83 48 83	62 60 79 47 34 79 95 60 83	74 60 79 51 37 79 110 60 83	87 72 79 57 43 79 128 72 83	87 84 79 60 46 79 131 84 83	111 96 79 70 54 79 163 96 83	136 96 91 84 65 91 198 96 95	185 96 92 96 76 91 257 96 95	257 96 92 96 88 91 341 96 95
Estimated Weights (lb.) Shipping Operating Add for Oilfield Skid	2,500 6,000 400	3,400 9,100 600	3,900 11,000 600	5,100 16,000 800	5,800 19,000 1,000	8,100 28,000 1,200	11,000 42,000 1,300	15,000 58,000 1,500	20,000 81,000 2,000
Notes: 1. Unless otherwise specified, media tank and machinery module will be shipped as separate items. 2. Max width shown for domestic motor freight. For D-6V and larger units, width can be reduced for shipment in ISO standard container with rated capacity reduced about 2%. 3. These data are for reference only and are not for construction. Details of individual units may vary.
