Industrial Heavy Duty Hose Reel & Cable Reel

Sewer Hydro Jetting Hose Reel

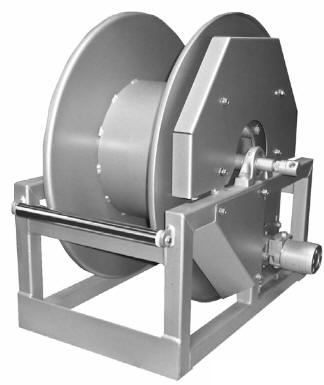

Series 6200 Pumper Cleaner Hose Reel

Series 6200 Pumper Cleaner Hose Reel

Series 6200 Pumper Cleaner Reel

To Handle 3/4 Thru 1 Inch ID Hose

Up to 3000 psi

Power Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



• Heavy-duty construction.

• Strong spool and frame to control hose expansion.

• Inlet – 1" FNPT 90° ball bearing swivel joint.

• Outlet 1" female NPT threads.

• Hydraulic motor rewind.

• #50 chain and sprocket drive.

• Steel hub assembly – rated to 3000 psi (207 bar).

• Assembly "A" roller on front of frame.

• Full chainguard.



Options

• 5000 psi working pressure.

• Roller assemblies.

• Direct drive hydraulic motor rewind (see page 14).

• Hose Packages.



For:

• Rodding

• Water Blasting

• Sewer Cleaning

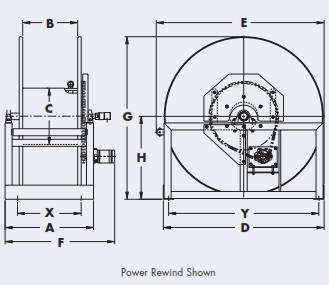

Series 6200 Pumper Cleaner Hose Reels - Drawing

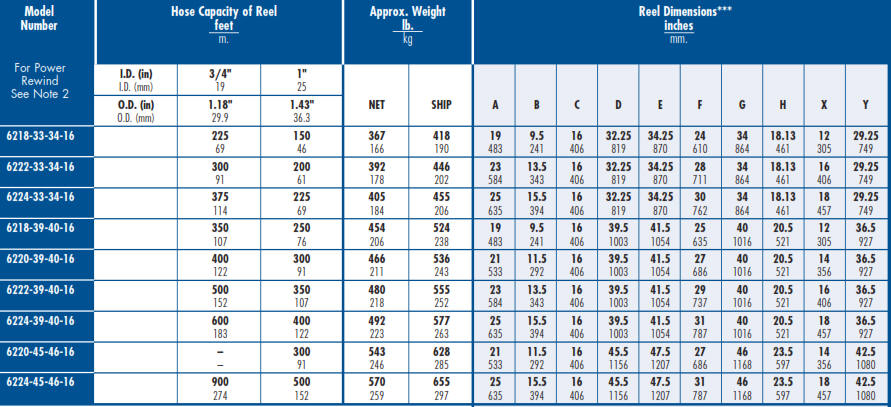

Series 6200 Pumper Cleaner Hose Reels - Chart

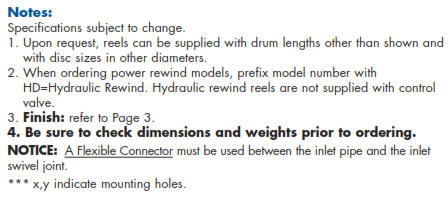

Series 6200 Pumper Cleaner Hose Reel- Notes
