Industrial Heavy Duty Hose Reel & Cable Reel

LP Gas Fuel Hose Reel

PMB Series LP Gas Hose Reel

PMB Series LP Gas Hose Reel

PMB Series LP Gas Hose Reel

For 1" through 1 1/2" ID Liquid Hose

and 1/2 through 1 Inch Vapor Hose

Power Rewind Liquid Reel

Manual Rewind Vapor Reel



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



Features:

POWER REWIND LIQUID REEL WITH MANUAL REWIND VAPOR REEL

To handle 1" through 1-1/2" I.D. liquid hose & 1/2" through 1" vapor hose.

• Gear-driven crank on vapor reel.

• #40 chain and sprocket drive powered by an electric, hydraulic or compressed air motor liquid reel.

• Pinion shaft brake standard.

• Other locking devices may be specified.

• Standard inlet is 90° ball bearing swivel joint with 1-1/2" female NPT threads.

• Manual rewind reel: 1" female NPT 90° ball bearing swivel joint.

• Liquid reel: flanged riser,1" female NPT threads.

• Vapor reel: riser,1" female NPT threads.

• Standard inlet, outlet riser, and hub assembly are steel.

• Other sizes and/or threads can be furnished and must be specified.

• Rollers and roller mounting brackets are accessory items. Specify roller position.

• Pressures to 350 psi (24 bar).

• Temperatures from -40° F to +350° F (-40° C to +177° C).

• Consult factory for other pressures and temps.

• Chainguard available upon request, must be specified.

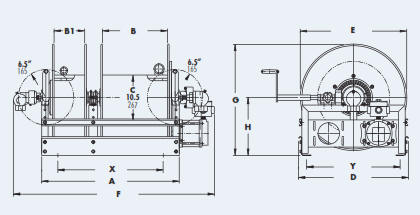

LP Gas Hose Reel PMB Drawing

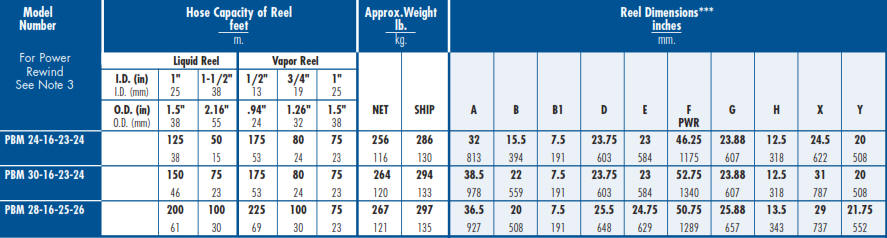

LP Gas Hose Reel PMB Chart

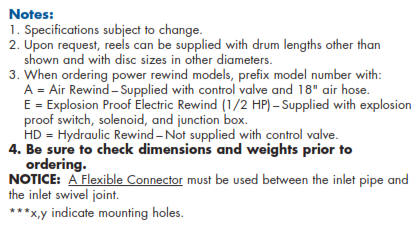

LP Gas Hose Reel PMB Notes
