Navigational Aids to IALA Standards

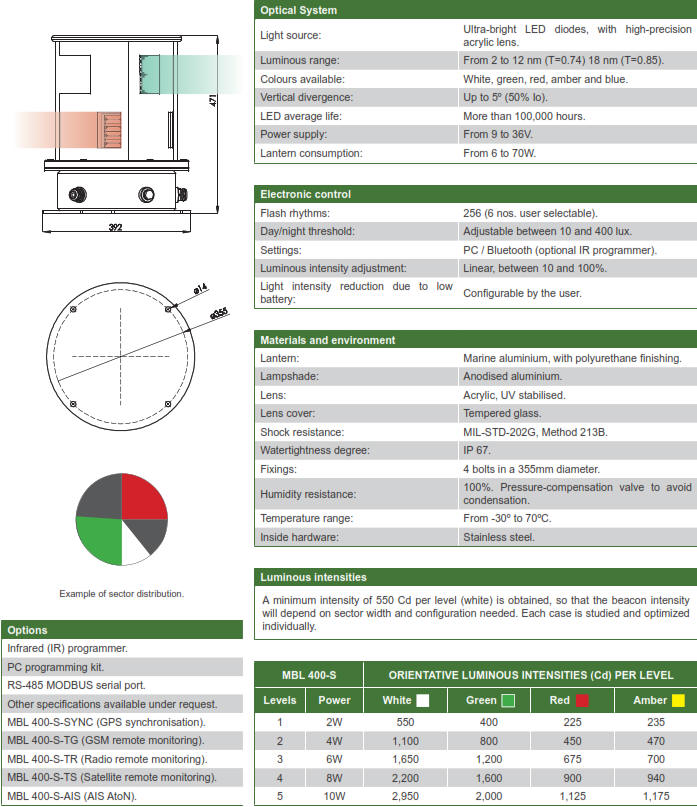

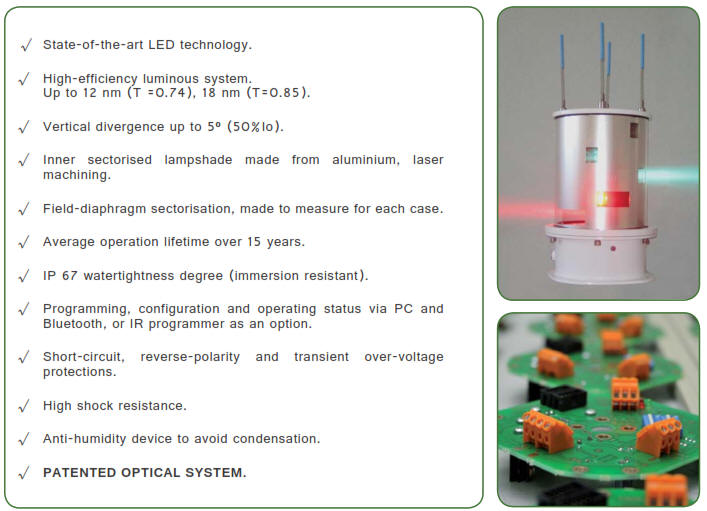

The MBL 400-S is a medium-range LED sector light, with a great optical efficiency,

providing sectored light beams with an accuracy of up to 0.5º.

Its luminous source consists of high-intensity LED diodes, obtaining a range of up to 12 nautical miles.

Intended to be placed in on-shore aids-to-navigation locations, such as poles and towers,

as well as hard-to-reach sites or under extreme environmental conditions.

Its optical system utilizes the point light source of the lens to make an effective sectorisation in each case.

Every sector requires an individual light level, which enables practically any sector configuration.

Levels are superimposed and protected by a shock-resistant glass lens cover.

Thus, each beacon is personalized as considering the required range, colors and angles of sector.

Designed according to IALA Recommendations.
