LNG Liquefied Natural Gas

Fill Receptacle

LNG Liquified Natural Gas Recepticle

LNG Fill Receptacle

Medium：LNG and LN2

Weight：1.5kg = 3.37 lbs.

Max. Work Pressure：4.0Mpa = 580 psi

Explode Pressure：13.8Mpa = 2001 psi

Flow Rate：190 lpm = 50 gpm

Design temp：-196 to +85 degree C = -320 to 185 F

Leakage： ZERO

Avg. Bond Time： 3s

Avg. Depart Time： 2s

Port Connection：1-1/16-12UN or M30×1.5

LNG Liquified Natural Gas Recepticle

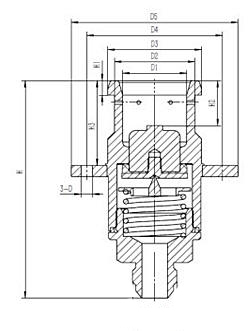

Model	Major Outline and Port Size Spec （mm）										Port Thread
Model	D	D1	D2	D3	D4	D5	H1	H2	H3	H	Port Thread
P-FR1	φ7.14	φ39.46	φ49.28	φ57.15	φ82.55	φ101.6	9.78	27.9	51.6	134.6	1-1/16-12UN
P-FR2	φ7.14	φ39.46	φ49.28	φ57.15	φ82.55	φ101.6	9.78	27.9	51.6	134.6	M30×1.5
