Lifting Points

Aluminum Lifting Points

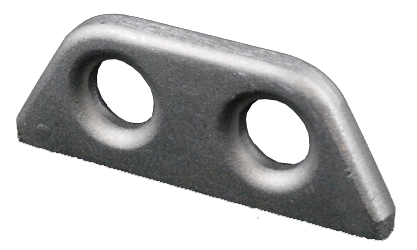

Fixed Double Aluminum Lifting Eye Point

PBE-04-LIFT

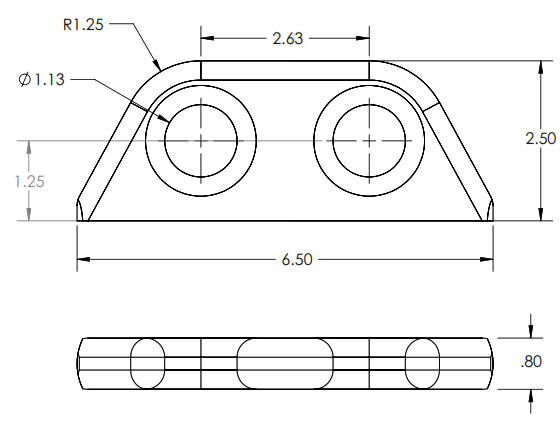

2.5 Tall x 6.5 Inch Long

1.13 Inch Diameter Eyes

1720 Lbs. Theoretical SWL (5:1) for Each Eye



Safe Working Load Calculated by Dividing Breaking Load (8600 lbs.) by 5 (5:1)



Fixed Double Aluminum Lifting Eye Point
