Utility Jib Crane - Davit Cranes

Model 20AAM

Portable, Fixed or Truck Mounted

Utility Jib Crane - Davit Cranes

20AAM Davit Crane

Up to 2000 lbs Load

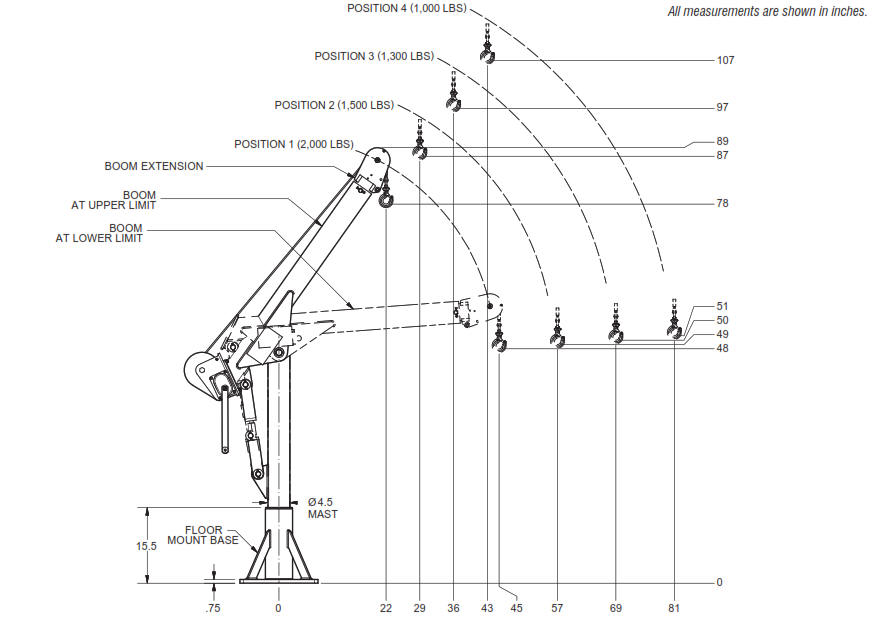

Up to 81 Inch Reach


Other Models Available:


Standard Davit Features

. Available with AC, DC, pneumatic, hydraulic, and manual hoists

. Four-position extendable boom for flexible operation

. Turnbuckle boom angle adjustment

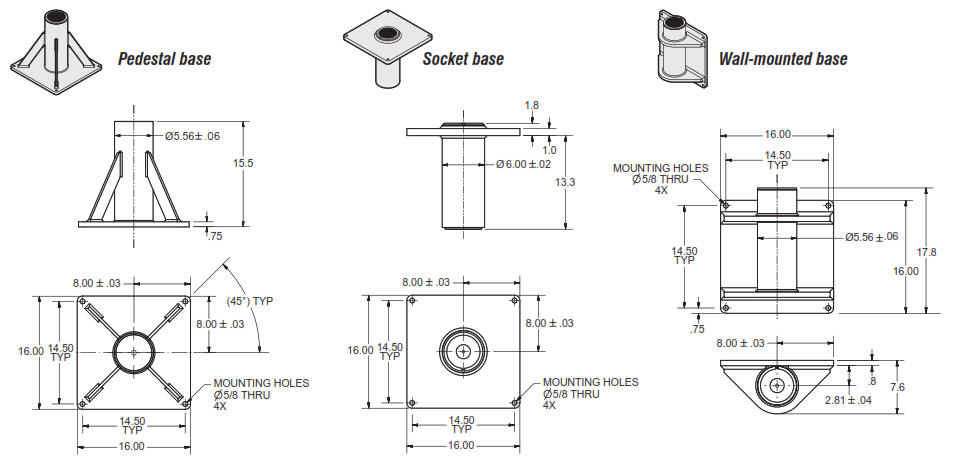

. 360º rotation in pedestal, socket or wall mounted bases

. Top and bottom sleeve bearings in base allow for ease of rotation when under load

. Powder coated frame and components

. Stainless steel models available



. Swing handle

. Upper limit switch

. Overhaul plate

. Rotary limit switch with adjustable lower limit

. Weather resistant coatings and hardware

. Additional features and upgrades available upon request

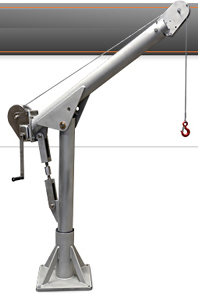

davit crane 20AAM


davit crane 20AAM
