Twist Lock Bin

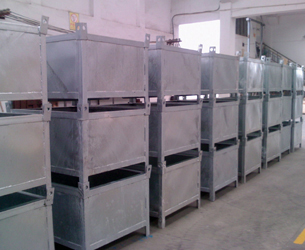

Twist Lock Flat Racks and Twistlock Bins

   container flat rack twistlock bins



DA-B1 Series

Twistlock Bins for 20 and 40 Foot Flat Racks


Twistlock Flatrack Bins

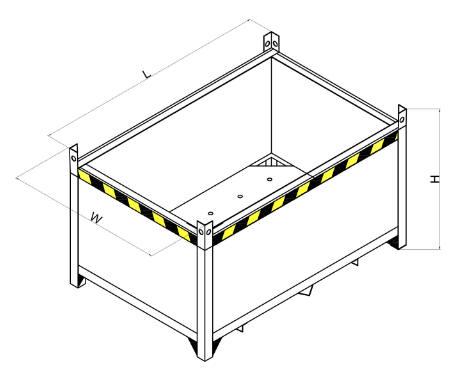

Model

Length (L)

Width (W)

Height (H)

DA-B1/1

1320

870

790

DA-B1/2

1320

1090

740

DA-B1/3

1200

800

600

DA-B1/4

1075

1075

780

DA-B1/5

1000

800

600

DA-B1/6

800

500

600

DA-B1/7 1320 1080 830
DA-B1/8 1200 1000 830
DA-B1/9 1075 750 650
DA-B1/10 1320 1090 850
DA/B1/11 1320 870 725

Other Sizes Available - All Dimensions in mm



Other Equivalent Equipment

Brand

Model Number

Size

Cargotec MacGregor

SB-8/1

1320 x 1090 x 855

German Lashings

SB-3

1320 x 1090 x 740

SEC

Bin

1075 x 1075 x 790

MEC B14.1-1.09 1300 x 1140 x 730



Twistlock flat racks are designed to carry twistlocks, hanging stackers, and midlocks with the ship during transit from port to port.  Once the ship enters port and begins loading or unloading operations, the flatrack is offloaded onto the pier.  As needed, the bins are removed from the flat rack and fork lifted to where the stevedores are conducting loading or unloading operations on the pier.  As the containers are loaded or unloaded, the twistlocks are taken from or returned to the bins.



Type and Class Approved on Request



Download Complete Container and Cargo Securing Catalog with Drawings


How Do Container Ships Work?



How Does A Forge Work?



Return to Container Securing: Main Catalog Page



This catalog page includes;

cargo securing flat rack, cargo lashing flat rack, twistlock flat rack, twistlock bins, container twistlock bins, flat racks, sat bins, fat bins, C5AM-DF bins, CV-15 bins, CV-20 bins, midlock bins, hanging stacker bins,  SEC Bin, German Lashings SB-3, Cargotec and MacGregor SB-8/1, Cargotec and MacGregor FLT-20 / FLT-40, German Lashings FL-2B / FL-4, SEC PL-40x8/16 and PL-20x8/10,
