Container Turnbuckles

Class Society Approved: ABS, DNV-GL, CCS and Others
Container Turnbuckles Knob Type Container Turnbuckles Hook to Jaw Container Turnbuckles

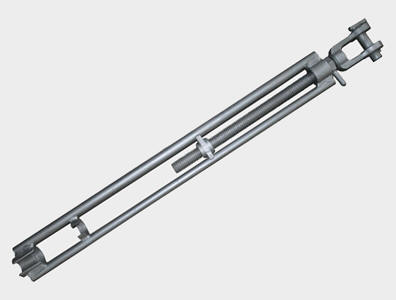

Knob Type Container Turnbuckle Hook To Jaw Type Container Turnbuckle Hook to Hook Type Container Turnbuckle
BA-K1 BA-A1/HJ BA-A1/HH
Jaw to Knobs - Open Body Hook to Jaw - Open Body Hook to Hook - Open Body
50 Metric Tons Breaking Load 50 Metric Tons Breaking Load 50 Metric Tons Breaking Load
1080 to 1490mm Take Up 930 to 1420mm Take Up 930 to 1420mm Take Up

Container Turnbuckle Jaw to Jaw Container Turnbuckles Conatiner Turnbuckle
Jaw to Jaw Type Container Turnbuckle Hook to Elephant Foot Turnbuckle Hook to Hook Turnbuckle
BA-A1/JJ CE-B1 HE CE-B1 HH
Jaw to Jaw - Open Body Hook to Elephant Foot Hook to Hook
50 Metric Tons Breaking Load 20 Metric Tons Breaking Load 20 Metric Tons Breaking Load
    930 to 1420mm Take Up 482 to 592mm Take Up

Container Turnbuckle Container Turnbuckle
Pelican Hook to Hook Container Turnbuckle Pelican Hook to Hook Container Turnbuckle
Pelican Hook to Hook - Open Body Pelican Hook to Hook - Open Body
42 Tons BL  16 Tons BL
1100 to 1500mm Take Up 1100 to 1500mm Take Up

Container turnbuckles are used in combination with lashing bars to secure containers above deck on a container ship or barge.  The jaw end of the turnbuckle is secured to a d ring or lashing plate which is welded to the ships deck.  The other end of the turnbuckle is attached to either a short or long lashing bar which in turn is connected to a container corner casting.  Long lashing bars, about 4500 to 5000mm long are for use with the bottom fittings on the 3rd container tier.  Short lashing bars, about 2500 mm long are for insertion into the corner casting at the bottom of the 2nd tier of containers.

Turnbuckles have a maximum and minimum opening length.  If you turn the bars of the turnbuckle they will tighten or loosen depending on the direction turned.  During container use, you want the turnbuckle to have all slack taken out of the system, but you dont want the fitting to be too tight.  Hand tight is plenty.


Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?
