Pillow Block Split Roller Bearings

02 Series (heavy duty)

6 7/16 Inches (155 mm) to 14 inches (340 mm)



Pillow Block Split Roller Bearings   Pillow Block Split Roller Bearings

Pillow Blocks

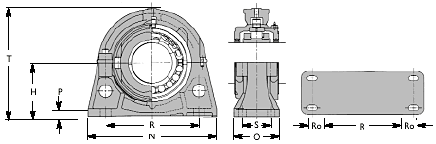

Shaft diameter (d) Reference Pedestal
Casting Only
H N O P Bolts R Ro S T Wt.
(lb.)
(kg)
Pillow Block Complete
inches mm inches millimeters Min Max
6 7/16
6 1/2
160
170
02 BCP 607
02 BCP 608
02 BCP 160
02 BCP 170
P32 10 1/2
267
23 1/2
596
9 1/2
242
1 3/4
44
4-11/4
M30
16 7/8
429
18 3/8
467
-
-
6 3/4
172
21
535
460
209
6 15/16
7
180 02 BCP 615
02 BCP 700
02 BCP 180 P33 10 3/4
273
25
636
9 1/2
242
1 3/4
44
4-1 1/4
M30
17 1/4
438
18 3/4
476
-
-
6 1/2
166
21 1/2
545
540
245
7 15/16
8
190
200
02 BCP 715
02 BCP 800

02 BCP 190
02 BCP 200
P34 12
305
27
686
10 1/2
266
2
50
4-1 1/4
M30
19 1/4
489
20 3/4
527
-
-
7 1/2
190
24
610
730
331
9 220 02 BCP 900 02 BCP 220 P35 12 3/4
324
29 1/2
750
11
280
2
50
4-1 1/4
M30
20 7/8
530
22 3/8
568
-
-
7 1/2
190
25 1/2
650
860
390
10 240
260
02 BCP 1000 02 BCP 240
02 BCP 260
P36 14
356
32
812
11 1/2
292
2 1/8
54
4-1 1/4
M36
22 3/4
578
24 1/4
616
-
-
8
204
28
710
1000
454
11 280 02 BCP 1100 02 BCP 280 P37 14 7/8
378
36
914
13
330
2 3/8
60
8-1 1/4
M30
20 1/4
514
21 3/4
552
4
101.6
10
254
30
760
1200
545
12 300 02 BCP 1200 02 BCP 300 P38 15 1/2
394
37 3/4
958
13
330
2 3/8
60
8-1 1/4
M30
21 1/2
546
23
584
4
101.6
10
254
31
790
1380
625
13

320 02 BCP 1300 02 BCP 320 P39 16 1/2
419
40
1016
11 1/2
292
2 1/2
64
8-1 1/4
M30
23 1/4
591
24 3/4
629
4
101.6
8 1/4
210
33
840
1550
705
14 340
360
02 BCP 1400 02 BCP 340
02 BCP 360
P40 17 3/4
451
43
1092
14 1/2
368
2 5/8
67
8-1 1/2
M36
25 1/4
641
26 3/4
679
4
101.6
11
280
35 1/2
900
1850
840
Add mm for millimeters and EX for expansion type or GR for fixed type to reference
i.e. 02 BCP 530 mm GR.
This dimension is half the additional longitudinal bolt hole pitch on the eight bolt base.

  Roller Bearings Unit and Cartridge Unit Only

(see above for complete Pillow Block)

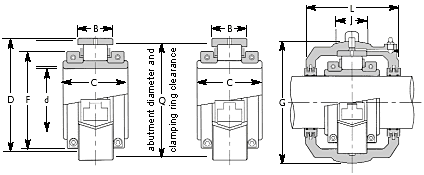

Roller Bearing

  Cartridge Unit
Shaft diameter (d) Reference D C B Q Wt.
(lb.)
(kg)
Reference Cartridge housing only G J L Available axial movement Note (I) Wt.
(lb.)
(kg)
Bearing only Cartridge, bearing & seal
inches mm inches millimeters inches mm
6 7/16
6 1/2
160
170
02 B 607
02 B 608
02 B 160
02 B 170
12.500
317.50
5.500
140
3.281
83.3
11.024
280
85
39
02 BC 607
02 BC 608
02 BC 160
02 BC 170
02 C 32 14 1/2
368.3
3 3/4
95
9 1/8
232
1
25.4
210
95
6 15/16
7
180 02 B 215
02 B 700
02 B 180 13.000
330.20
5.500
140
3.281
83.3
11.575
294
100
45
02 BC 615
02 BC 700
02 BC 180 02 C 33 15
381.0
3 3/4
95
9 17/32
242
1
25.4
244
111
7 15/16
8
190
200
02 B 715
02 B 800
02 B 190
02 B 200
14.500
368.30
6.141
156
3.563
90.5
12.913
328
130
59
02 BC 715
02 BC 800
02 BC 190
02 BC 200
02 C 34 16 3/4
425.5
4 1/18
105
10 5/32
274
1 1/8
28.6
314
143
9 220 02 B 900 02 B 220 15.500
393.70
6.402
163
3.563
90.5
13.938
354
150
68
02 BC 900 02 BC 220 02 C 35 18
457.2
4 3/18
110
10 25/32
274
1 1/8
28.6
365
166
10 240
260
02 B 1000 02 B 240
02 B 260
17.000
431.80
6.668
170
3.813
96.8
15.276
388
170
77
02 BC 1000

02 BC 240
02 BC 260
02 C 36 19 1/2
495.3
4 5/18
118
11 1/32
280
1 5/32
29.0
400
182
11 280 02 B 1100 02 B 280

18.250
463.55
7.323
186
4.000
101.6
16.535
420
190
86
02 BC 1100 02 BC 260
02 BC 280
02 C 37 20 3/4
527.10
5 1/8
130
11 13/16
300
1 5/32
29.0
478
217
12 300 02 B 1200 02 B 300 19.500
495.30
7.594
193
4.063
103.2
17.638
448
270
123
02 BC 1200 02 BC 300 02 C 38 21 3/4
552.5
5
128
12 1/16
306
1 7/32
31.0
556
252
13 320 02 B 1300 02 B 320

20.750
527.05
7.559
192
4.188
106.4
18.819
478
330
150
02 BC 1300 02 BC 320 02 C 39 23 1/8
587.4
5
128
12 13/162
324
-
-
710
322
14 340
360
02 B 1400 02 B 340
02 B 360
22.250
565.15
7.875
200
4.563
115.9
20.236
514
400
182
02 BC 1400 02 BC 340
02 BC 360
02 C 40 24 3/4
628.7
5 3/4
146
13 1/4
336
-
-

810
368
Add mm for millimeters and EX for expansion type or GR for fixed type to reference i.e. 02 B 300mm EX. Chamfers
Inner race: 1/8 inches / 3mm
Outer race: 1/8 inches / 3mm

(1) Offset from centerline to accommodate axial movement should not exceed half this amount.
(2) Q diameter clears clamp rings.
For these dimensions please consult our technical department
