Utility Jib Crane - Davit Cranes

Model 10AAM

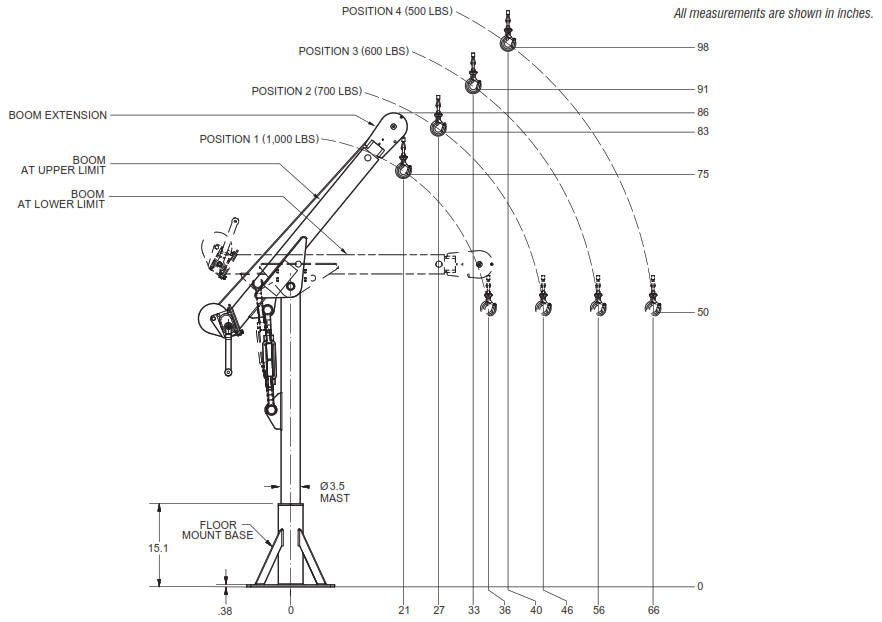

10AAM Davit Crane

Up to 1000 lbs. Load

Up to 66 Inch Reach

Other Models Available: info@pacificmarine.net

Standard Davit Features

. Available with AC, DC, pneumatic, hydraulic, and manual hoists

. Four-position extendable boom for flexible operation

. Turnbuckle boom angle adjustment

. 360º rotation in pedestal, socket or wall mounted bases

. Top and bottom sleeve bearings in base allow for ease of rotation when under load

. Powder coated frame and components

. Stainless steel models available

Options

. Swing handle

. Upper limit switch

. Overhaul plate

. Rotary limit switch with adjustable lower limit

. Weather resistant coatings and hardware

. Additional features and upgrades available upon request
